Cleaning-, Disinfection- and Drying machines

Series 28

The Series 28 marks the entry into large-chamber cleaning systems. It provides two washing levels with integral loading trolleys and can be operated either in stacking mode or telescopic mode. For loading a wide variety of items, modular operation is available, allowing the use of four different washing-rack modules optimized for the specific application.

Key specifications of the base unit:

Width

1160 mm

Depth

918 mm

Height

1856 mm +20 mm / -0

Chamber volume

685 l

  • High-quality, professional equipment design
  • Developed for high throughput performance and animal cage cleaning
  • Optional configuration with integrated high-performance drying system
  • Operation possible in either single-level or two-level mode
  • Loading trolleys are interchangeable between levels
  • Modular operation optionally available
  • Washing temperature up to 93 °C
  • Drying temperature up to 110 °C
  • Special construction heights available
  • Custom manufacturing in special materials available

    Available configurations:
  • Pass-through unit (two-door design) with hinged doors
  • Pass-through unit (two-door design) with lifting doors
  • Single-door unit with hinged door
  • Single-door unit with lifting door

Optional – separate hot-air cabinet

To significantly increase the throughput capacity of the cleaning and disinfection unit Type 28, we optionally offer a separate hot-air drying cabinet.

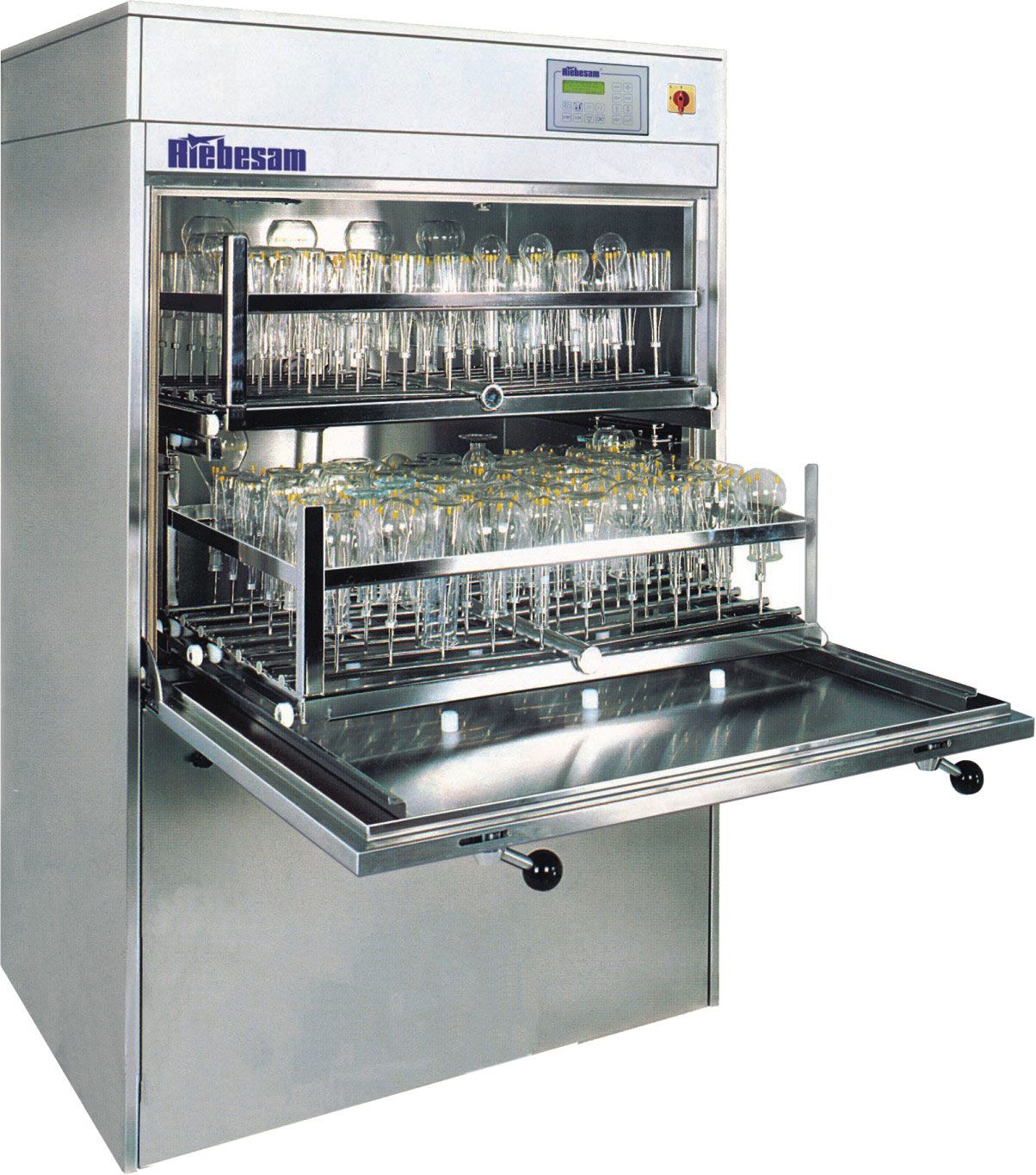

Front view of a cleaning, disinfection, and drying system of Series 28
